Description
Product Description
The HMT5 WiFi controller combines sophisticated style with ultimate functionality, featuring a high-definition 4.0” colour touchscreen for intuitive operation. With built-in WiFi, there's no need for additional hubs - simply connect directly to your smartphone using the companion App. The user-friendly interface allows seamless navigation, providing complete control whether you're at home or away.
Designed for versatility, the HMT5 offers 4 or 6 timed heating events per day, adaptive heating to maximise energy efficiency, and an open window function that prevents energy waste. This intelligent controller includes a built-in room temperature sensor and compatibility with all common floor sensor types (10k, 12k, 15k, and 100k), ensuring seamless integration with any electric underfloor heating system.
Fully compliant with Lot 20 energy efficiency standards, this thermostat supports all leading EUFH brands and is backed by a three-year warranty. It's a practical and stylish addition to any heating system.
16A WiFi Electric Underfloor Heating Controller:

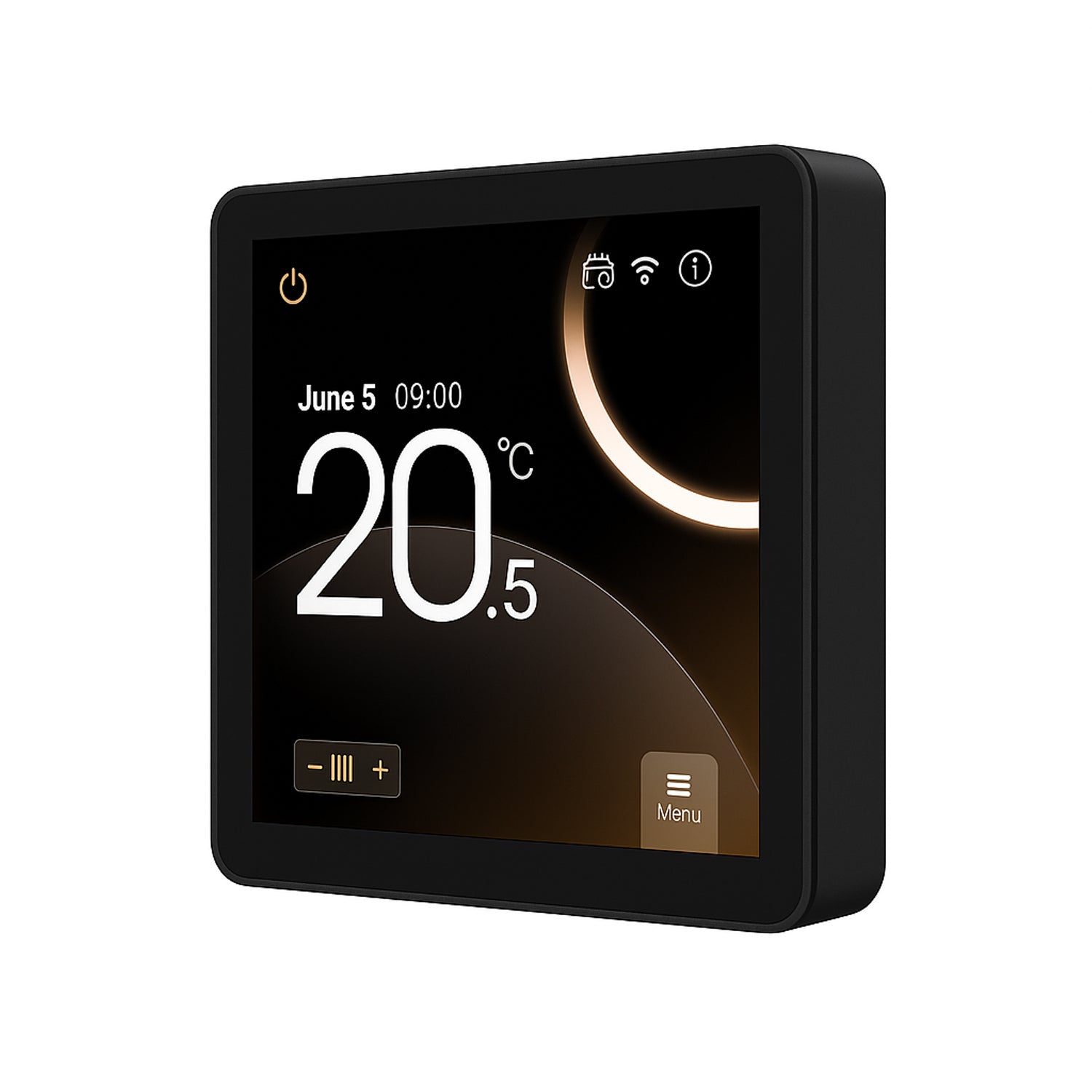

HMT-T5W-ANTH – ANTHRACITE (BLACK)

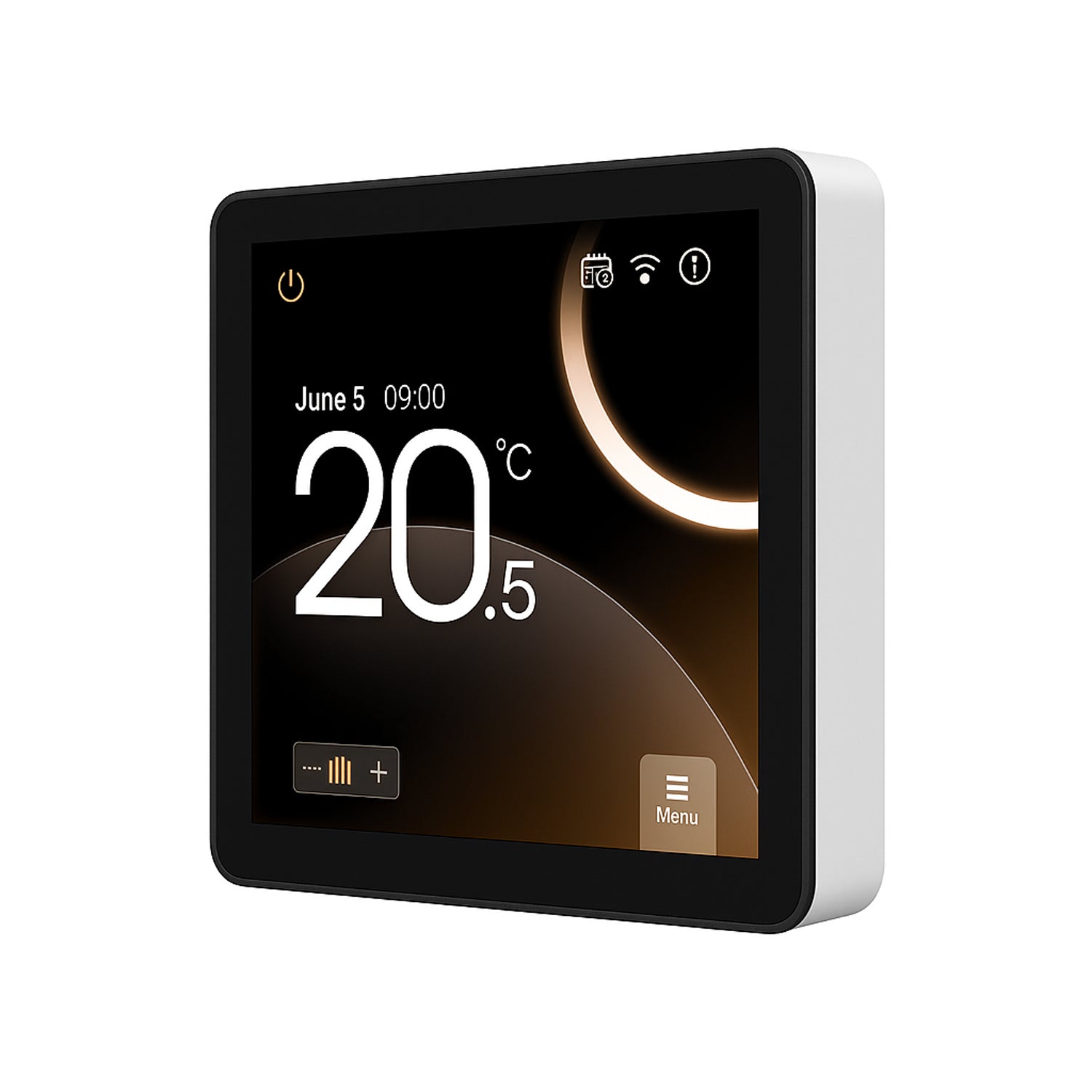

HMT-T5W-WHIT – WHITE
Specifications
Product Specifications
| Supply Voltage | 100-240V / 50-60Hz |
| Max Load | 3600W (16A @ 230V) |
| IP Class | IP21 |
| Temperature range | +5°C to +40°C |
| Floor limit range | +5°C to +40°C |
| Sensor settings | Floor / Room / Room with Floor sensor as temperature limiter |
| Screen type | 4.0" TFT capacitive touch |
| Floor sensor type | 10K @ 25°C |
| Colour | White and Anthracite Black |
| Installation Configuration | Euro back box |
| Dimensions | 86 x 86 x 43 mm |
| Standards | UKCA / RoHS |
| WiFi | 2.4Ghz |
