Product Description

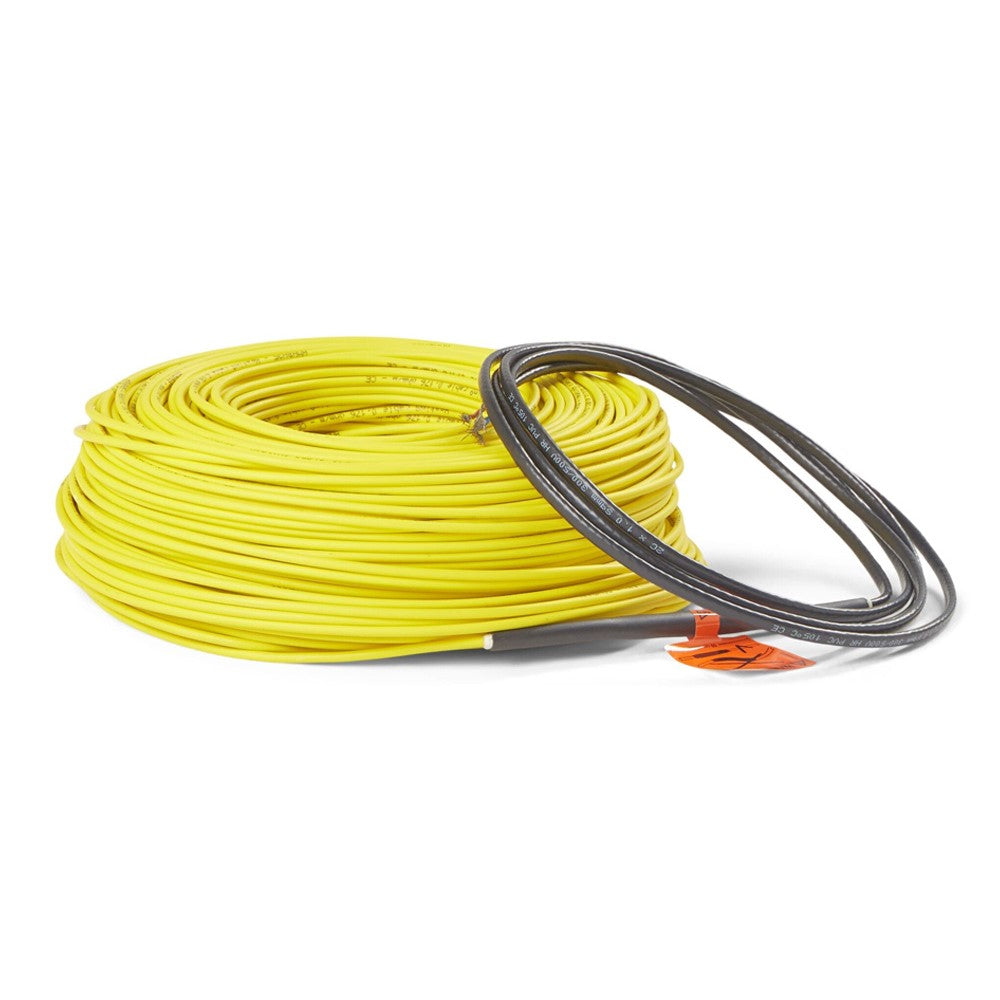

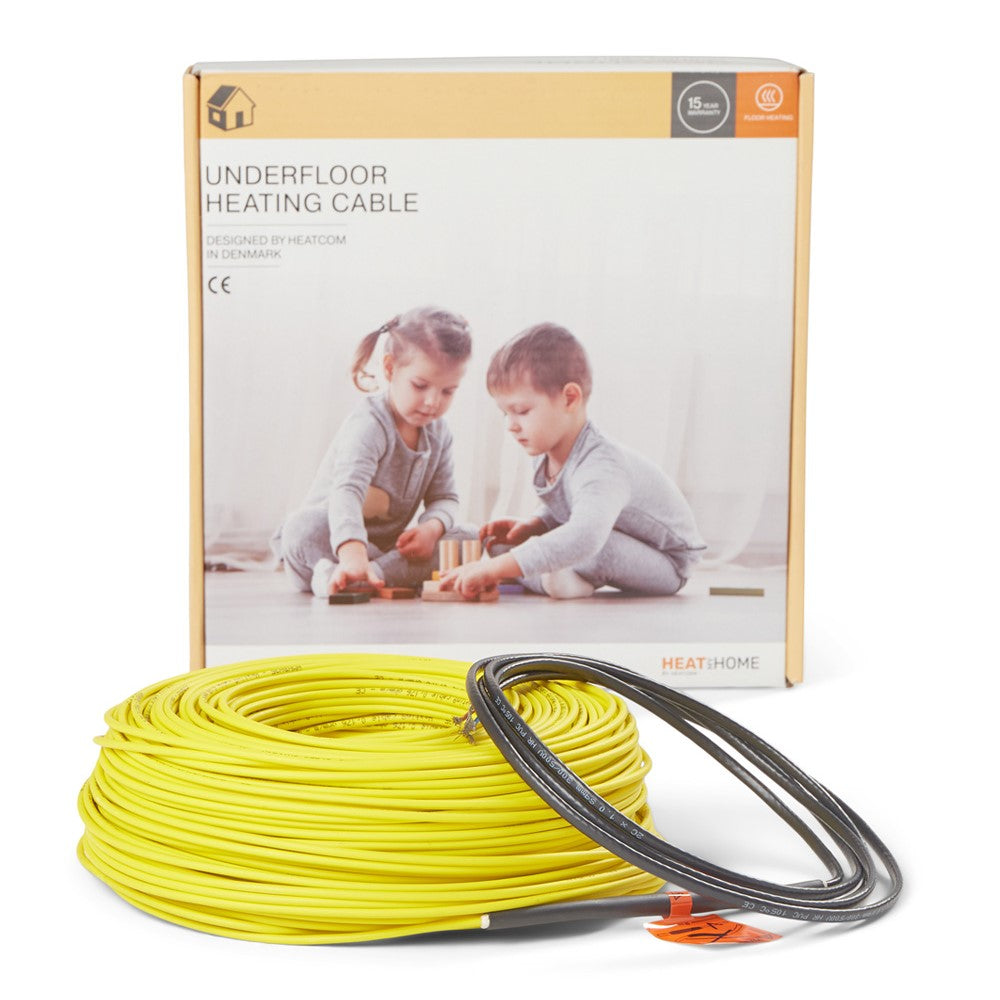

Heat My Home 3.5mm Underfloor Heating Cable an efficient and budget-friendly alternative to traditional heating mats. Our solution for all your floor heating requirements comes in the form of a flexible, ultra-thin, and universally compatible underfloor heating cable, measuring just 3.5mm in thickness. Designed with a focus on energy efficiency and cost-effectiveness, this adaptable heating cable offers the convenience of floor warming or the capability to serve as a comprehensive room heating system.
One standout feature of this electric underfloor heating cable is its exceptional adaptability and user-friendly installation process. Thanks to its remarkable flexibility, it easily conforms to various contours, making it an excellent choice for compact or complex spaces.
Useful Documents
Specifications
Product Specifications
PRODUCT DESCRIPTION

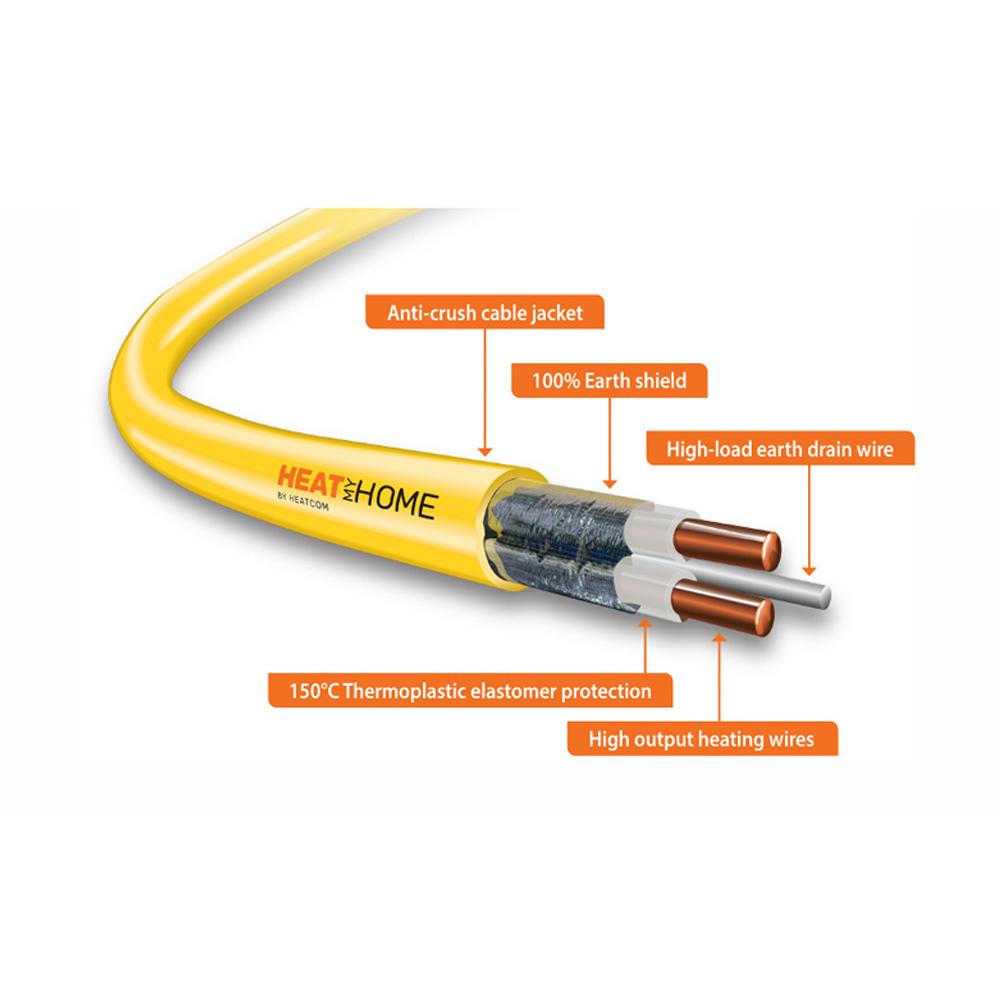

| General Construction | Dual conductor wire with earth |
| Supply Voltage | 240V - 50Hz |
| Power Output | 14W/m |
| Cable Dimensions | 3.5mm x 8.04m to 147m |
| Approvals | UKCA and CE marked |
| Wire Thickness | 3.5mm |
| Approved in accordance with | EN 60335-2-96 |
| IP Rating | IPX7 |
| Thermal Conductor | 2 x high-temperature TPE |
| Outer Insulation | Polyolefin |
| Coldtail Lead | 2.5m double insulated cable |
| Earth Protection | 100% aluminium earth shield |
| Reinforcement Materials | Fibreglass wire |
| Resistance | 454 ohm to 26 ohm |
| Wattage | 200W/sqm |
