Description
Product Description

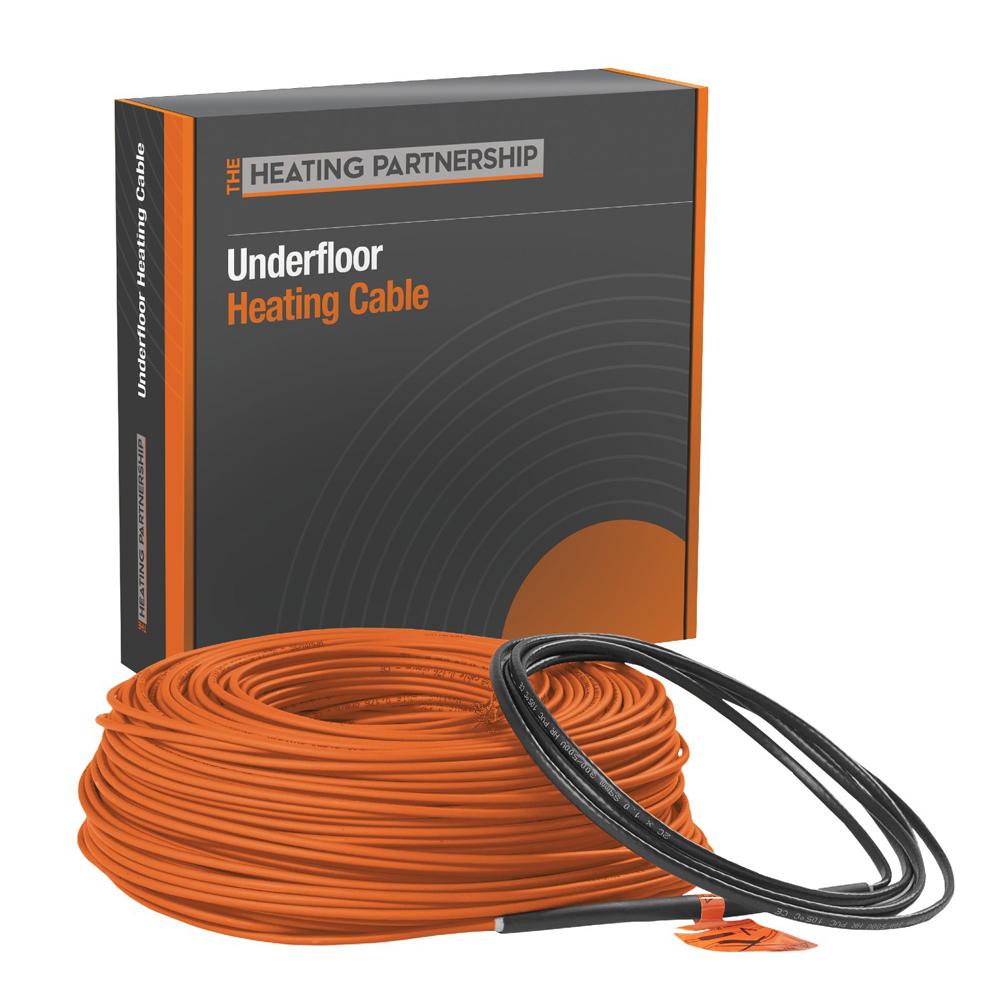

Introducing The Heating Partnership 3.5mm Underfloor Heating Cable – the ultimate budget-friendly solution for underfloor heating. Offering an incredibly low-cost alternative to traditional heating mats, this ultra-thin and flexible cable, just 3.5mm thick, provides an affordable option for all your heating needs. Designed to deliver energy efficiency at a fraction of the cost, it’s perfect for both floor warming and full-room heating systems.
The key to this cable’s appeal is its flexibility and ease of installation, making it an ideal choice for even the most awkward or compact spaces. Its simple installation process keeps labour costs down, making it an exceptionally cheap option for underfloor heating. If you're looking for an economical way to heat your home without compromising on effectiveness, The Heating Partnership 3.5mm cable is the smart, cost-effective choice that won’t break the bank.
Specifications
Product Specifications
PRODUCT DESCRIPTION

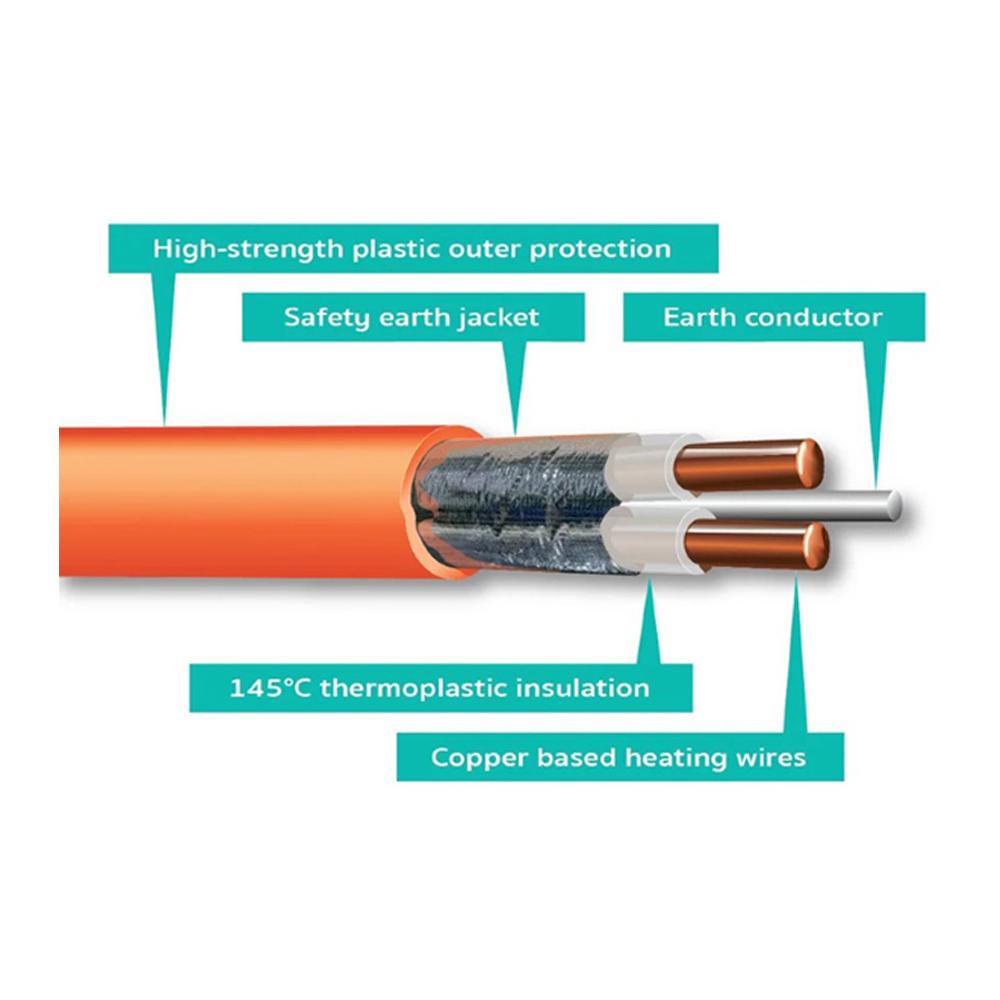

General Construction | Dual conductor wire with earth |
Supply Voltage | 240V - 50Hz |
Power Output | 14W/m |
Cable Dimensions | 3.5mm x 8.04m to 147m |
Approvals | UKCA and CE marked |
Wire Thickness | 3.5mm |
Approved in accordance with | EN 60335-2-96 |
IP Rating | IPX7 |
Thermal Conductor | 2 x high-temperature TPE |
Outer Insulation | Polyolefin |
Coldtail Lead | 2.5m double insulated cable |
Earth Protection | 100% aluminium earth shield |
Reinforcement Materials | Fibreglass wire |
Resistance | 454 ohm to 26 ohm |
Wattage | 200W/sqm |
