Description
Product Description

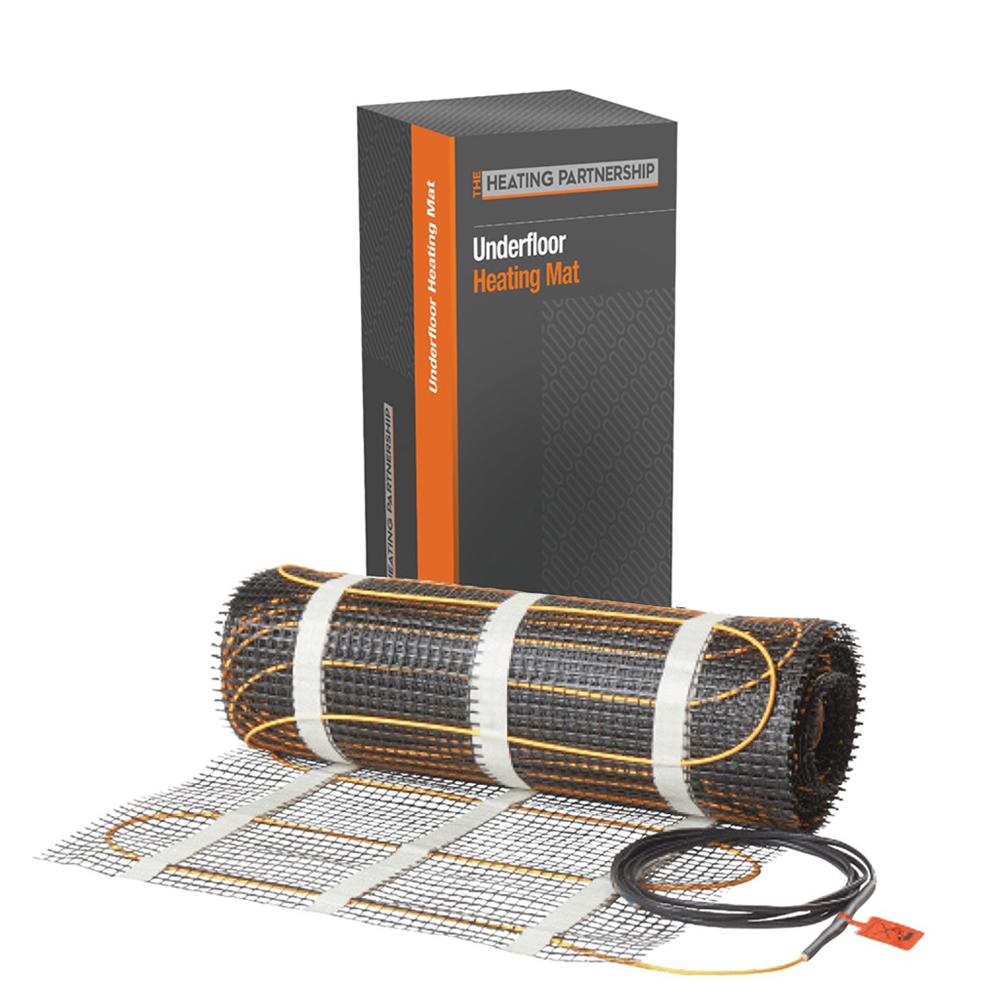

Our budget-friendly 160W/m² electric underfloor heating mats are durable and reliable making them a trusted choice among installers. Designed for easy installation, they offer an affordable solution without compromising on performance.
Perfect for heating floors in any room and acting as the main heat source in well-insulated spaces, these mats are a cost-effective option. With an integrated earth shield, they are safe for installation in wet areas, including bathrooms and wet rooms.
Ideal for tiles and compatible with wood, carpet, vinyl and laminate floors (when used with a levelling compound). Our mats ensure your floors stay warm, regardless of your flooring choice and the advanced wire design ensures a low build height and efficient heating.
The Heating Partnership's 160W/m² mats provide quick, reliable, and cost-efficient underfloor heating that fits within your budget, offering great value for money.
Thermostat pictured is not included in the price shown.
Specifications
Product Specifications
PRODUCT DESCRIPTION

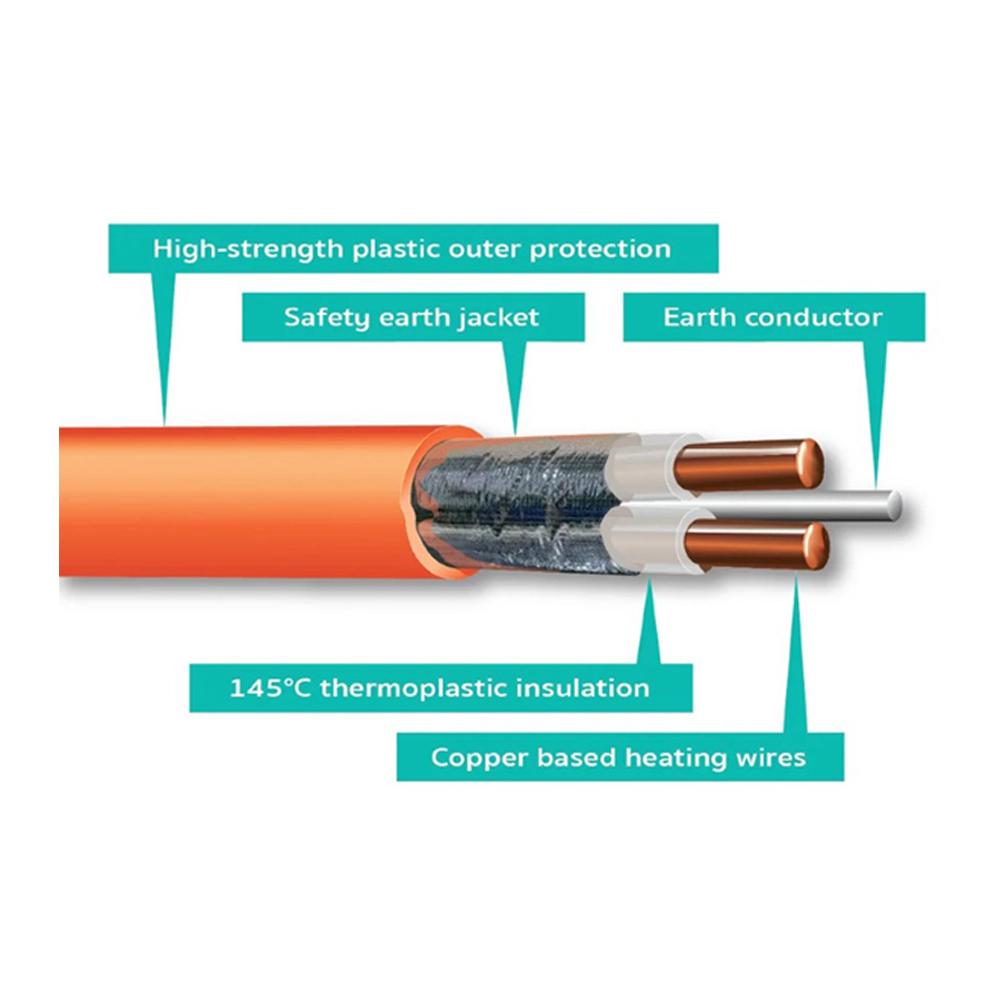

| General Construction | Dual conductor wire with earth |
| Supply Voltage | 240V - 50Hz |
| Power Output | 160W/m² |
| Mat Coverage | 1.0m² - 15.0m² |
| Mat Dimensions | 0.5 wide x 2.0m to 30.0m |
| Approvals | UKCA and CE marked |
| Wire Thickness | 3.5mm |
| Approved in accordance with | EN 60335-2-96 |
| IP Rating | IPX7 |
| Thermal Conductor | 2 x high-temperature TPE |
| Outer Insulation | Polyolefin |
| Coldtail Lead | 2.5m double insulated cable |
| Earth Protection | 100% aluminium earth shield |
| Reinforcement Materials | Fibreglass wire |
| Reinforcement Mesh | Fibreglass mesh |
| Fixing Material | Three strips of double sided tape |
| Resistance | 23.5 ohm to 346 ohm |
| Wattage | 160W - 2400W |
