Description
Product Description

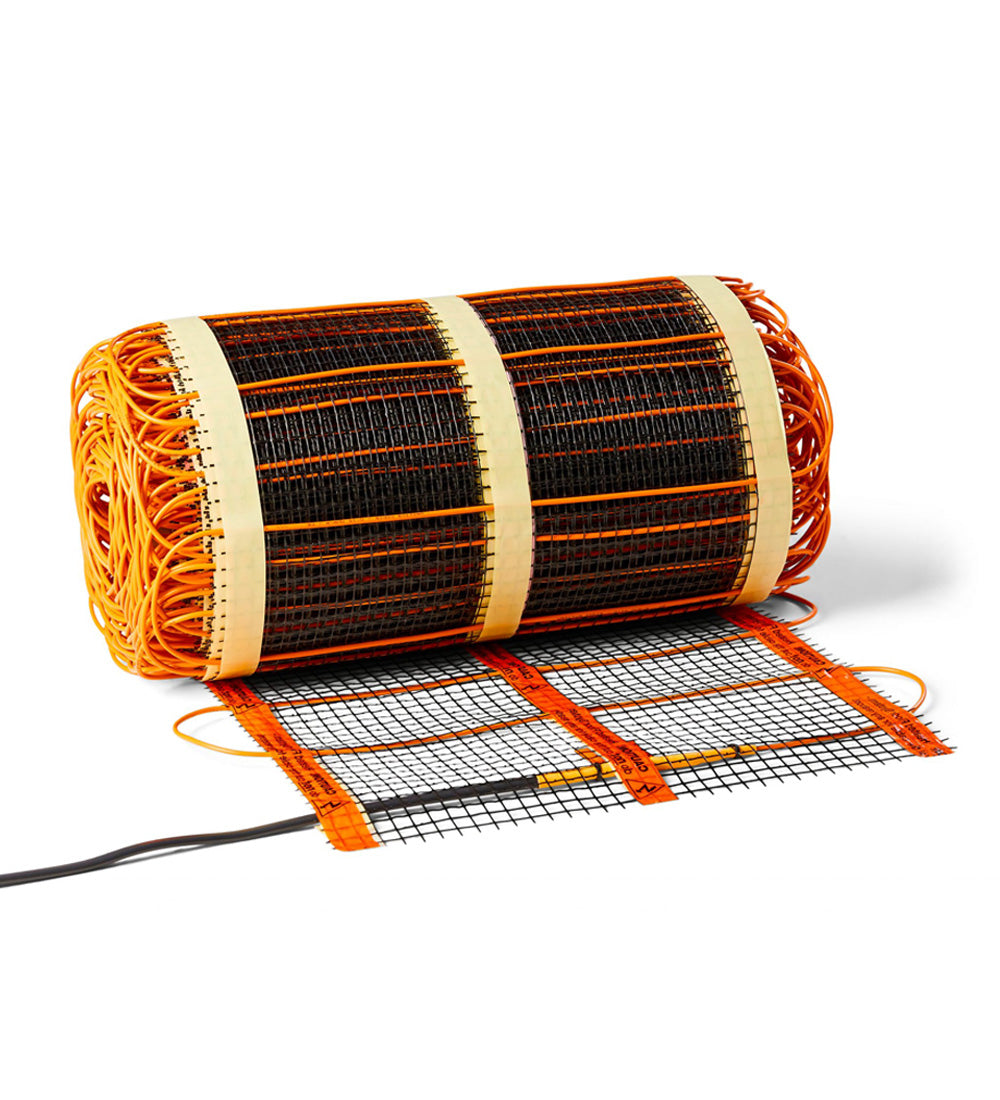

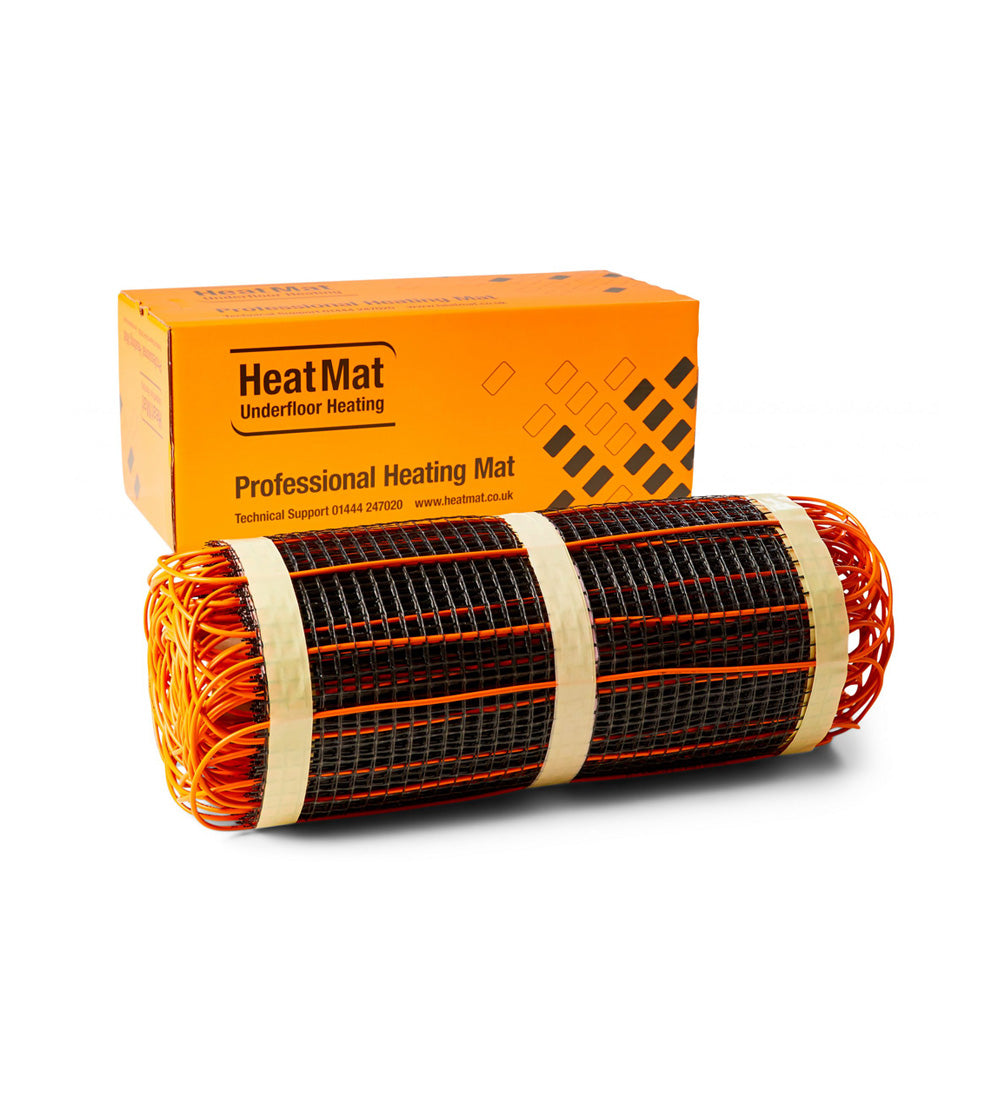

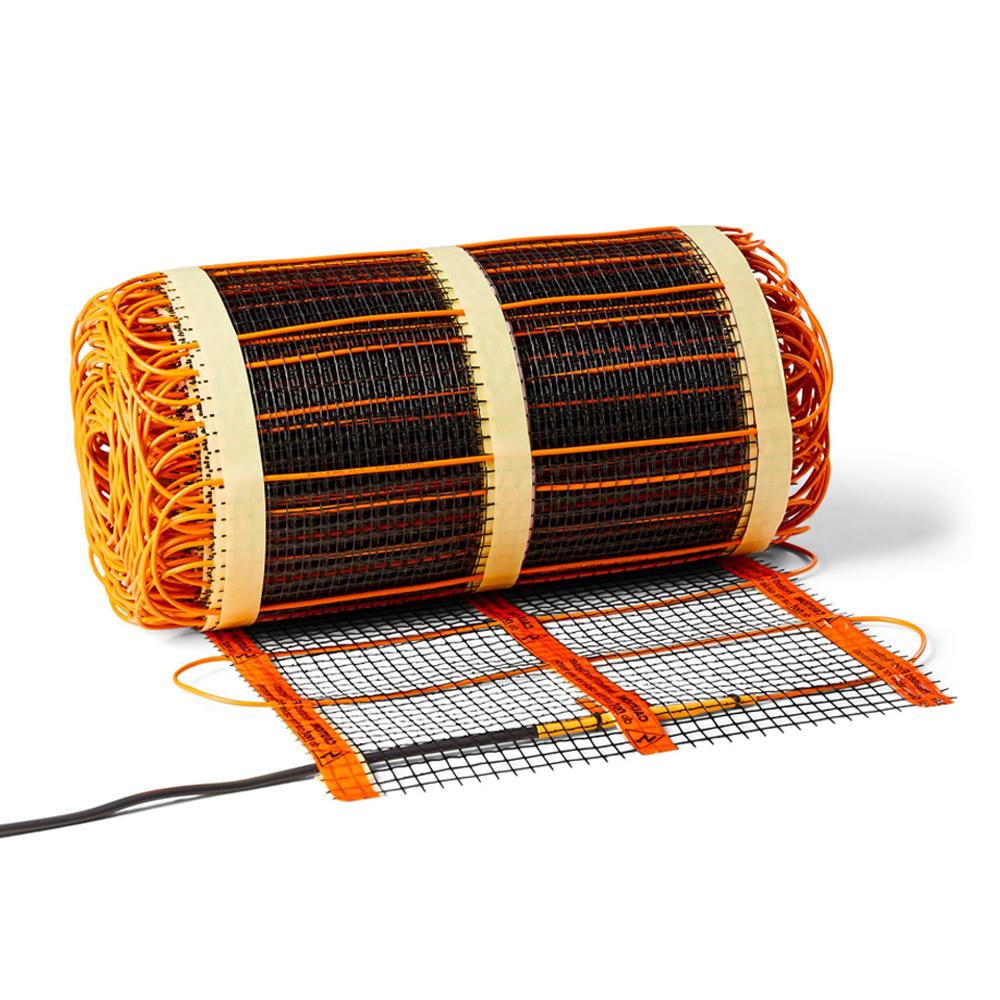

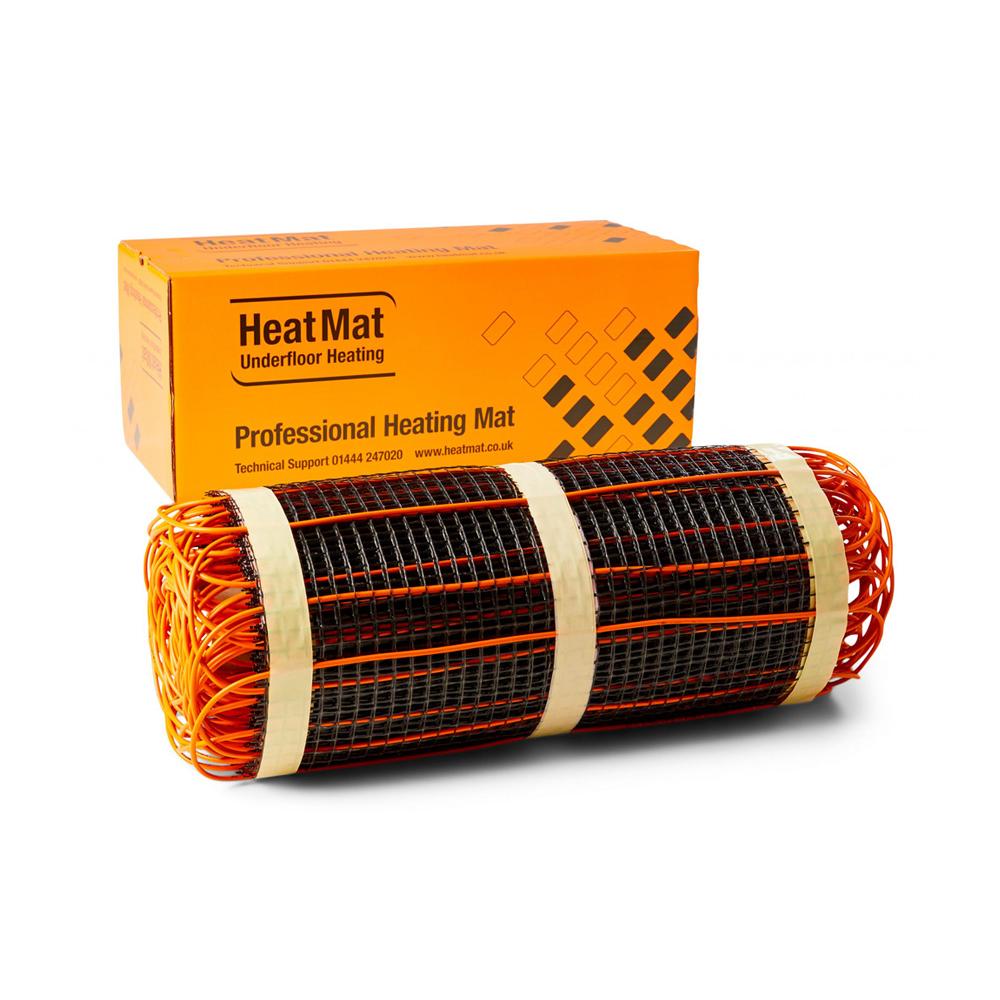

A professional fast-to-fit system designed to provide energy-efficient floor warming in all rooms, and a full heating system in well insulated areas.
This award winning electric underfloor heating mat range can be used beneath virtually any type of floor covering ensuring luxurious warm floors whatever your chosen floor finish. Our technologically advanced wire design delivers minimal build height combined with a robust high-powered heating cable.
- Suitable for warming floors in all rooms and serving as the main heat source in well-insulated areas, making it cost-effective.
- Includes an integrated earth shield making it safe for wet area installation, even in bathrooms and wet rooms.
- Ideal for tiles and compatible with carpet, bonded wood, and vinyl surfaces (when used with a leveling compound).
Keeping your floors warm no matter the flooring you choose, our advanced wire design offers low build height and powerful heating.

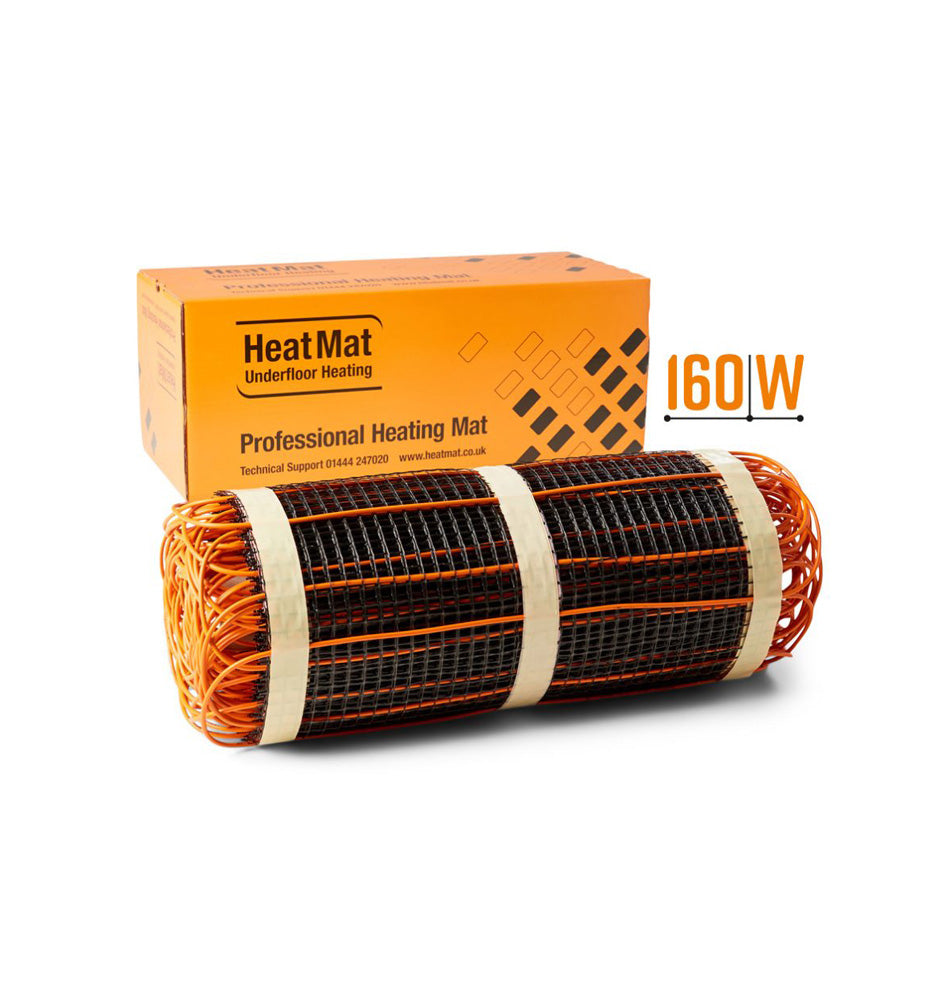

Heat Mat 160W/m² electric underfloor heating mats provide market leading quality and lifetime warranties.
Useful Documents
Specifications
Product Specifications

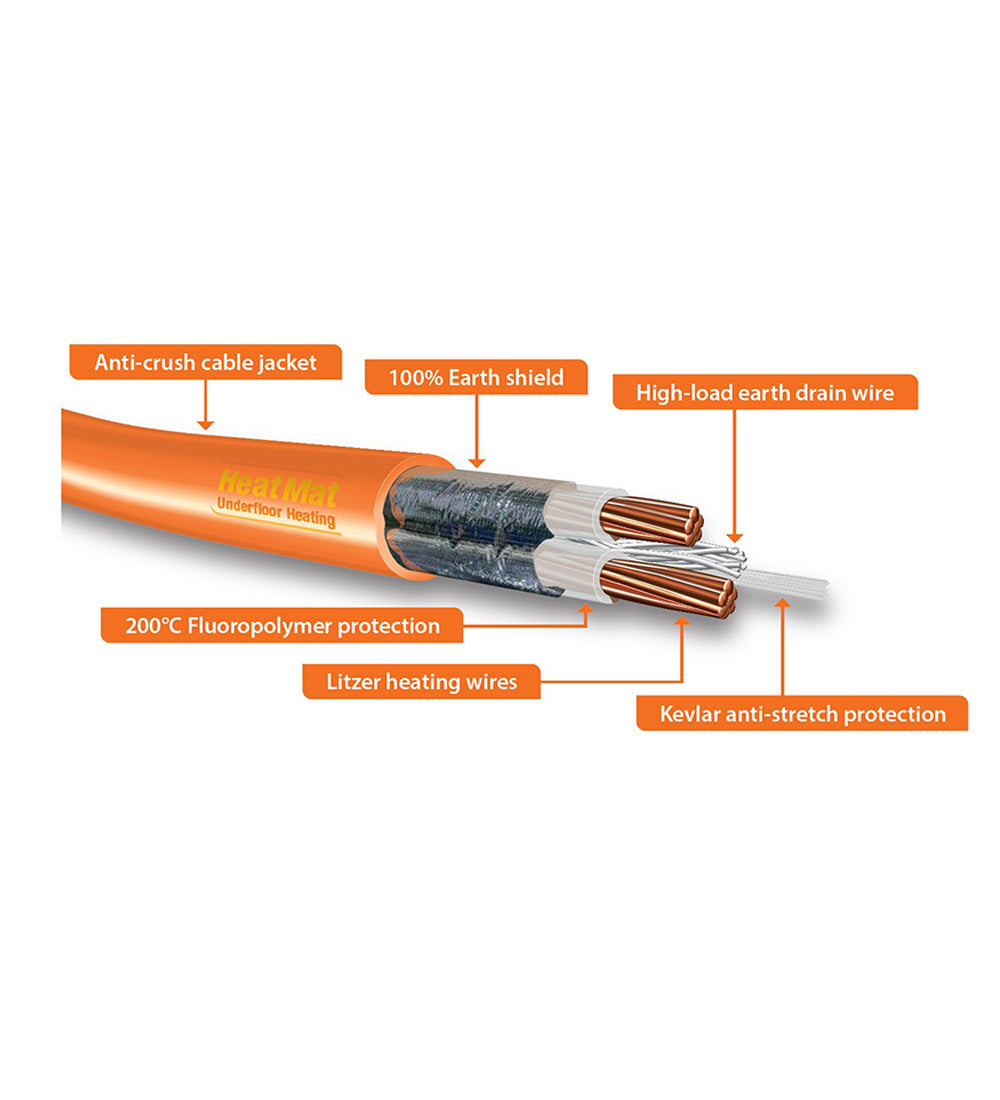

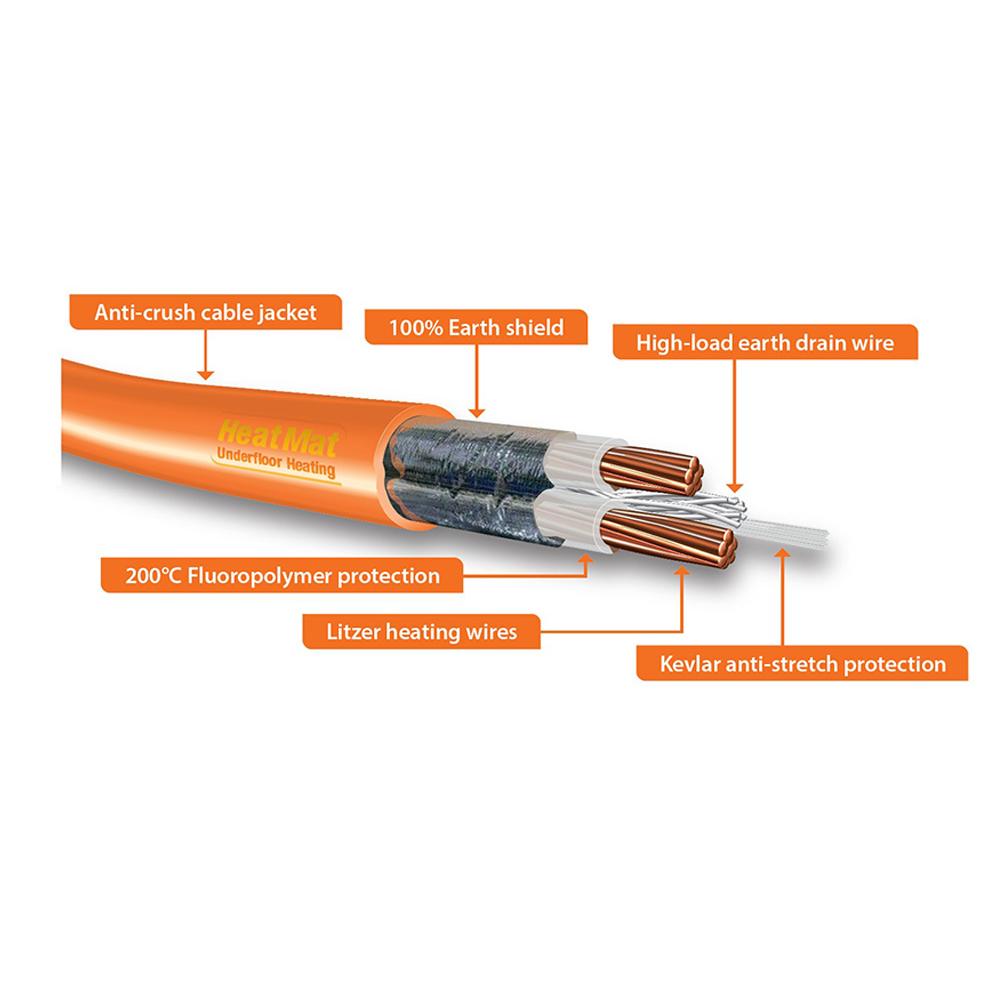

| General Construction | Dual conductor wire with earth |
| Supply Voltage | 240V - 50Hz |
| Power Output | 160W/m² |
| Mat Coverage | 0.7m²€“14.5m² |
| Mat Dimensions | 0.5m wide x 1.4m to 29.0m |
| Approvals | UKCA and CE marked |
| Wire Thickness | 2.7mm to 3.2mm depending on Ohm Value |
| IP Rating | IPX7 |
| Thermal Conductor | 2 x resistance wire insulated with fluoropolymer (FEP 7Y) tested to 200°C |
| Outer Insulation | Polyolefin |
| Coldtail Lead | 4.0m double insulated cable |
| Earth Protection | 100% aluminium earth shield |
| Reinforcement Materials | Fibreglass wire |
| Reinforcement Mesh | Fibreglass mesh |
| Fixing Material | Three strips of double sided tape |
| Resistance | 24 ohms to 503 ohms |
| Wattage | 120W - 2290W |
