Description
Product Description

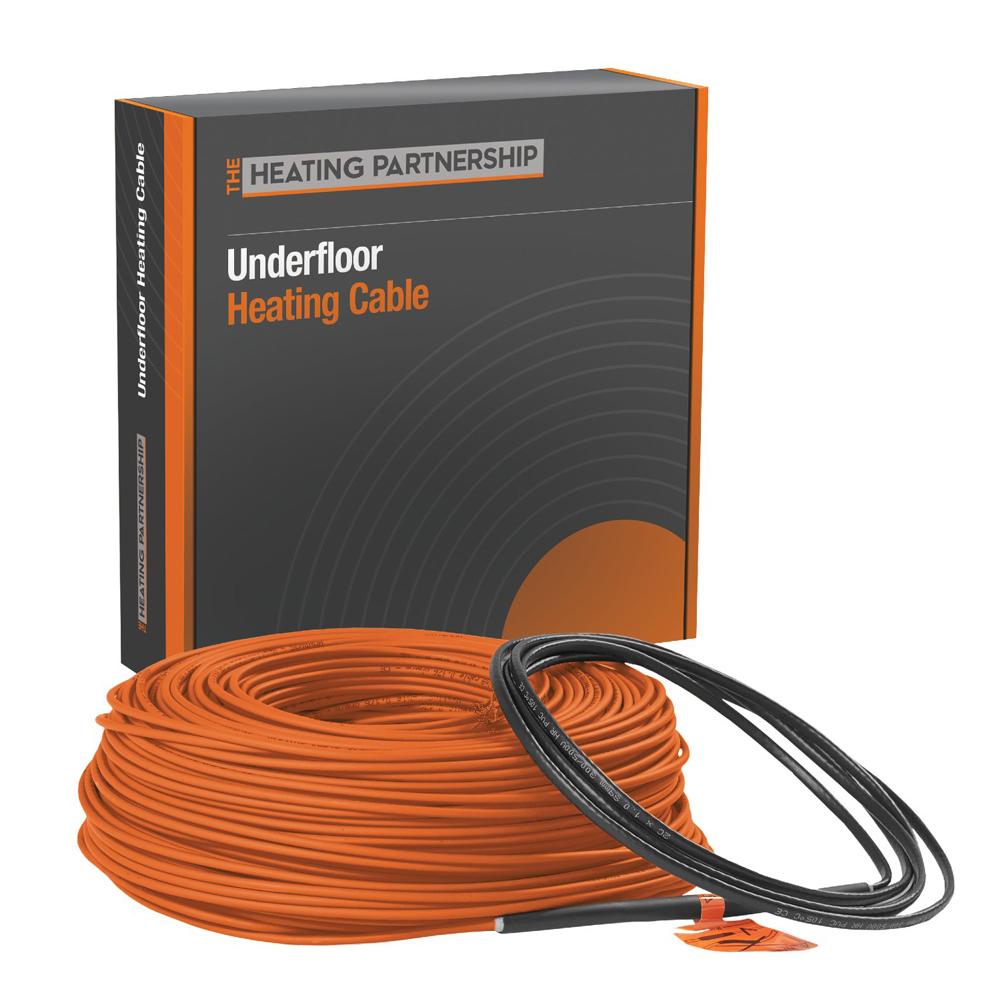

Introducing The Heating Partnership 3.5mm Underfloor Heating Cable – the ultimate budget-friendly solution for underfloor heating. Offering an incredibly low-cost alternative to traditional heating mats, this ultra-thin and flexible cable, just 3.5mm thick, provides an affordable option for all your heating needs. Designed to deliver energy efficiency at a fraction of the cost, it’s perfect for both floor warming and full-room heating systems.
The key to this cable’s appeal is its flexibility and ease of installation, making it an ideal choice for even the most awkward or compact spaces. Its simple installation process keeps labour costs down, making it an exceptionally cheap option for underfloor heating. If you're looking for an economical way to heat your home without compromising on effectiveness, The Heating Partnership 3.5mm cable is the smart, cost-effective choice that won’t break the bank.
Specifications
Product Specifications
PRODUCT DESCRIPTION
General Construction | Dual conductor wire with earth |
Supply Voltage | 240V - 50Hz |
Power Output | 14W/m |
Cable Dimensions | 3.5mm x 8.4m to 147m |
Approvals | UKCA and CE marked |
Wire Thickness | 3.5mm |
Approved in accordance with | EN 60335-2-96 |
IP Rating | IPX7 |
Thermal Conductor | 2 x high-temperature TPE |
Outer Insulation | Polyolefin |
Coldtail Lead | 2.5m double insulated cable |
Earth Protection | 100% aluminium earth shield |
Reinforcement Materials | Fibreglass wire |
Resistance | 454 ohm to 26 ohm |
Wattage | 130W - 2190W |
Wattage | 150W/sqm |
Downloads & Videos
Mirror Demisters
Installation Documents and Videos
Mirror Demista Installation Video
Demista New Instructions
All mirror demisters starting 7015
Demista-150-wide-data-sheet-230V1
All mirror demisters starting 7020
Demista-200-wide-data-sheet-230V1
All mirror demisters starting 7030
Demista-300-wide-data-sheet-230V1
All mirror demisters starting 7040
Demista-400-wide-data-sheet-230V1
All mirror demisters starting 7050
Demista-500-wide-data-sheet-230V1
All mirror demisters starting 7060
Demista-600-wide-data-sheet-230V1
All mirror demisters starting 7070
Demista-700-wide-data-sheet-230V1
All mirror demisters starting 75
Demista 12V data sheet
Ice & Snow Melting Products
All ACC-FRO codes
Both ICE-50W codes
ICE-50W CABLES
FRO-10A-STAT
FRO-10A-STAT Instructions
FRO-16A-STAT
FRO-16A-STAT Instructions
FRO-48A-STAT
FRO-48A-STAT INSTRUCTIONS
FRO-48A-STAT User Manual
Both FRO-GRO-SENS sensors
FRO-GRO-SENS Datasheet
FRO-GRO-SENS Manual
Underfloor Heating Products
Thermostats - HC90-BLK-WIFI and HC90-WHT-WIFI
HC90 Thermostat Factsheet
HC90 Thermostat Instructions
Thermostat - HCT-567-HC71
HC71 Thermostat Factsheet
Heating Cables - HMHCAB3.5-XXXX
HMHCAB3.5 Underfloor Heating Cables Factsheet
HMHCAB3.5 Underfloor Heating Cables Instructions
Heating Mats - HMHMAT160W-XXXX
HMHMAT160W Underfloor Heating Mats Factsheet
HMHMAT160W Underfloor Heating Mats Instructions
Heating Mats - PKM-160-XXXX
PKM-160 160W Underfloor Heating Mat Factsheet
PKM-160 160W Underfloor Heating Mat Instructions
Thermal Insulation Boards - TTB-010-6PCK
Insulation Boards Product Factsheet
Insulation Boards Instructions
Product Description
Introducing The Heating Partnership 3.5mm Underfloor Heating Cable – the ultimate budget-friendly solution for underfloor heating. Offering an incredibly low-cost alternative to traditional heating mats, this ultra-thin and flexible cable, just 3.5mm thick, provides an affordable option for all your heating needs. Designed to deliver energy efficiency at a fraction of the cost, it’s perfect for both floor warming and full-room heating systems.
The key to this cable’s appeal is its flexibility and ease of installation, making it an ideal choice for even the most awkward or compact spaces. Its simple installation process keeps labour costs down, making it an exceptionally cheap option for underfloor heating. If you're looking for an economical way to heat your home without compromising on effectiveness, The Heating Partnership 3.5mm cable is the smart, cost-effective choice that won’t break the bank.
Product Specifications
PRODUCT DESCRIPTION
General Construction | Dual conductor wire with earth |
Supply Voltage | 240V - 50Hz |
Power Output | 14W/m |
Cable Dimensions | 3.5mm x 8.4m to 147m |
Approvals | UKCA and CE marked |
Wire Thickness | 3.5mm |
Approved in accordance with | EN 60335-2-96 |
IP Rating | IPX7 |
Thermal Conductor | 2 x high-temperature TPE |
Outer Insulation | Polyolefin |
Coldtail Lead | 2.5m double insulated cable |
Earth Protection | 100% aluminium earth shield |
Reinforcement Materials | Fibreglass wire |
Resistance | 454 ohm to 26 ohm |
Wattage | 130W - 2190W |
Wattage | 150W/sqm |
