Description
Product Description

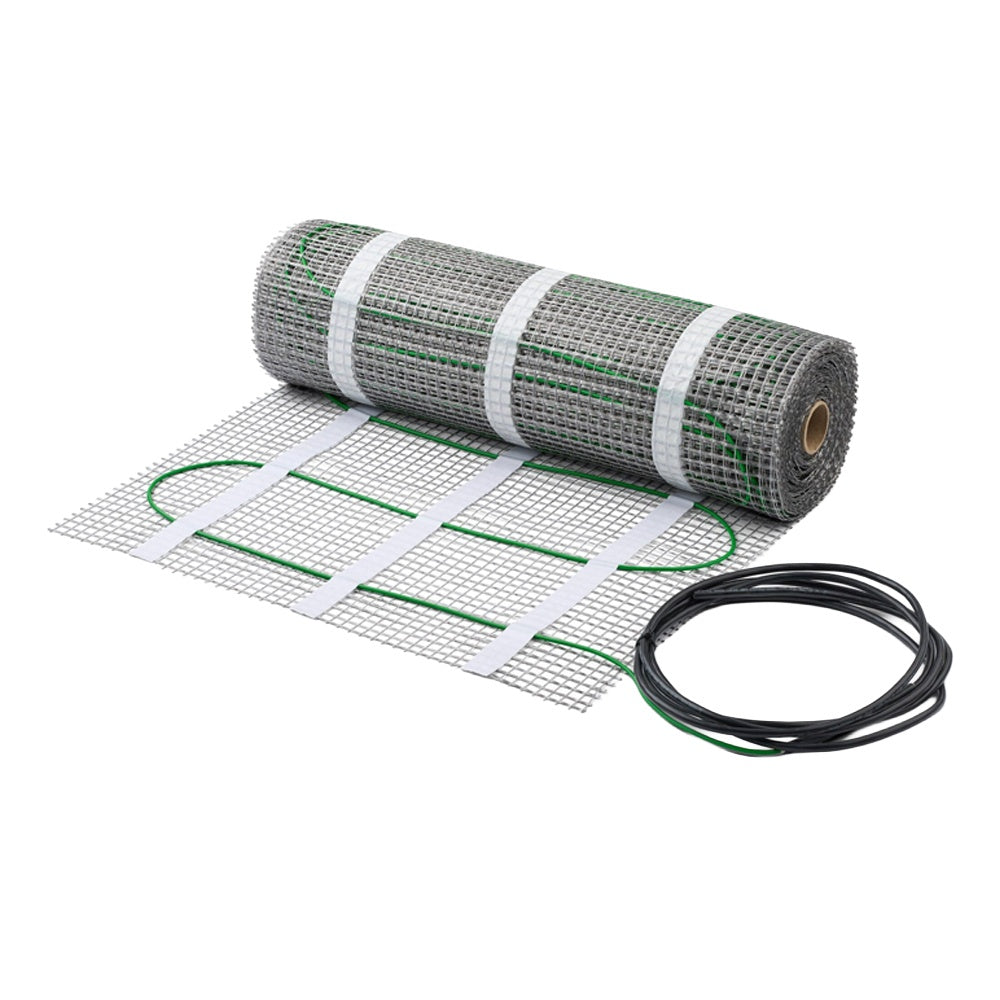

Heat Mat 150W/m² Sticky Mats combine reliable heating with a self-adhesive mesh backing for quick, straightforward installation. The backing helps hold the mat securely in place during fitting, making it a practical choice for professional installers.
Suitable for comfortable warm floors throughout the home, these mats can also act as the main heat source in well-insulated rooms where heat loss allows. An integrated earth shield makes them suitable for bathrooms and wet rooms when installed in accordance with the installation instructions.

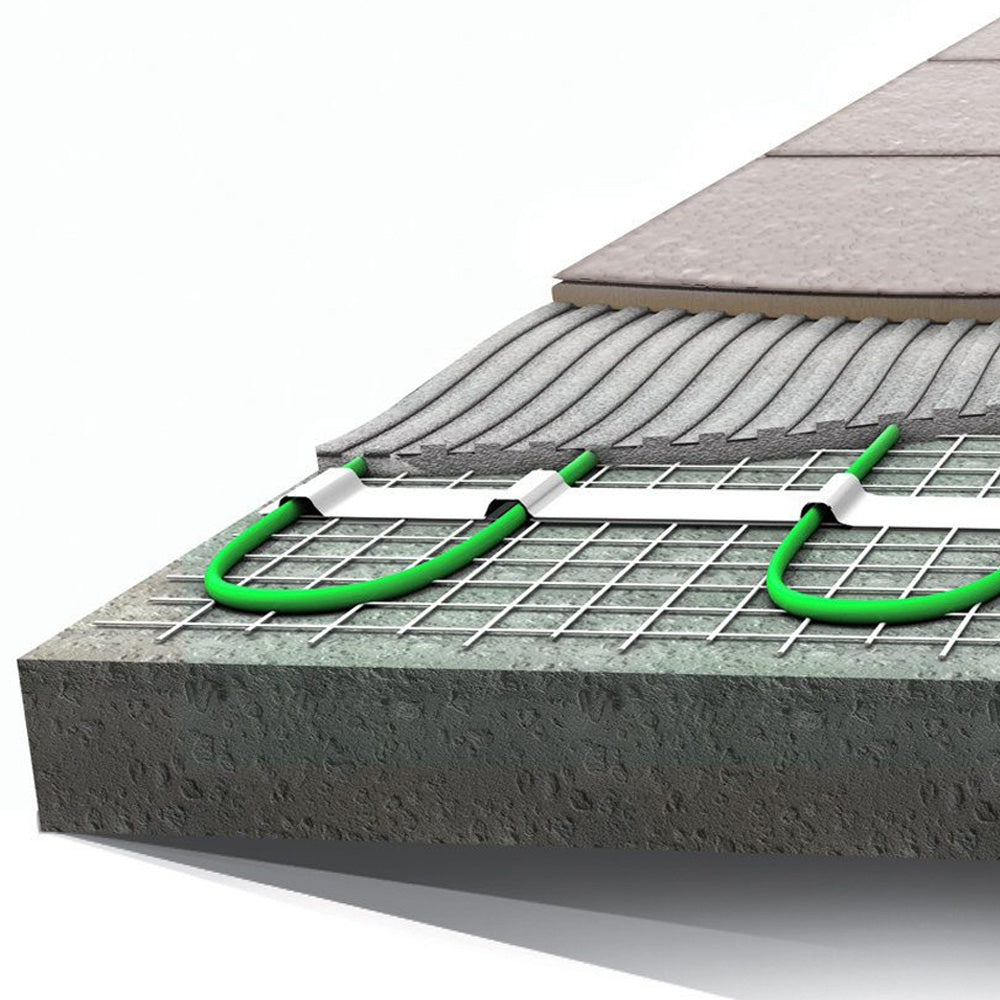

Ideal beneath tiles, Sticky Mats are also compatible with suitable wood, carpet, vinyl and laminate flooring when covered with an appropriate levelling compound. Their slim heating cable keeps floor build-up to a minimum while providing even, comfortable warmth.
Heat Mat 150W/m² Sticky Mats offer dependable electric underfloor heating with the added convenience of a self-adhesive backing, combining easy installation and lasting comfort.
Specifications
Product Specifications
| General Construction | Dual conductor wire with earth |
| Supply Voltage | 240V - 50Hz |
| Power Output | 150W/m² |
| Mat Coverage | 1.0m² - 15.0m² |
| Mat Dimensions | 0.5 wide x 2.0m to 30.0m |
| Approvals | UKCA and CE marked |
| Wire Thickness | 3.2mm |
| Approved in accordance with | EN 60335-2-96 |
| IP Rating | IPX7 |
| Thermal Conductor | 2 x high-temperature TPE |
| Outer Insulation | Polyolefin |
| Coldtail Lead | 3m double insulated cable |
| Earth Protection | 100% aluminium earth shield |
| Reinforcement Materials | Fibreglass wire |
| Reinforcement Mesh | Fibreglass mesh |
| Fixing Material | Self-adhesive mesh |
| Resistance | 23.5 ohm to 353 ohm |
| Wattage | 150W - 2225W |
